Poh Yong Tiles Industries Sdn Bhd, a long established manufacturer based in Kuching, Sarawak has become a Trusted Name in Concrete Products and is pleased to offer its latest range of EVEPAVE concrete paving blocks. With a wide range of patterns, designs and colour concepts that can be tailored to the project's specific needs, consultants, clients and end-users alike will delight in the results.

Produced at the state-of-the-art computer controlled plant using only the highest quality raw materials and the latest patented technology, you can be assured of a pavement which will form an outstanding feature of the development.

This proposal offers a comprehensive overview of the unique features of the EVERPAVE product, its technical specifications and our advanced production techniques. For the decision-maker, we set out the clear advantages of choosing interlocking concrete paving over other forms of pavement.

This proposal also incorporates the offer of a complete construction service from computer-aided pavement design/pattern to different paving block designs/shapes, colour selection, hightech production facilities, delivery, expert laying and application of advanced pave sealing materials. We provide supervisory/technical staff, experienced laying teams and the requisite equipment, if required.

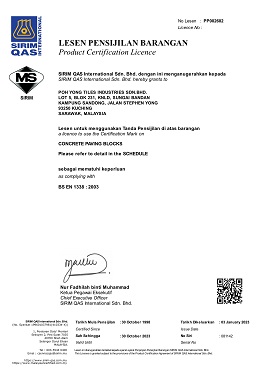

EVERPAVE products are approved by SIRIM under BS EN1338 : 2003 and our Quality Management System is certified to the ISO 9001 : 2008 standards.

ROMAN/ UNIDECOR

Dimensions : Average Compressive Strength :
230 x 140 x 60mm thk In excess of 49 N/mm²

Units per m² : Manufacturing Standard :
38 pcs BS 6717 Part I 1993
  (Upgraded to BS EN 1338 : 2003 )

Average weight per piece : Applications :
3.3 kg Light to Medium Duty Traffic

Colour Selection :
Natural Grey, Regal Red, Dark Grey,Yellow Beige, Misty Green, Peach Brown


ZIGZAG

Dimensions : Average Compressive Strength :
225 x 112.5 x 60/80/100mm thk In excess of 49 N/mm²

Units per m² : Manufacturing Standard :
39.5 pcs BS 6717 Part 1 1993
  (Upgraded to BS EN 1338 : 2003 )

Average weight per piece : Applications :
3.3/4.3/5.3 kg Light to Heavy-Duty Traffic

Colour Selection :
Natural Grey, Regal Red, Dark Grey,Yellow Beige, Misty Green, Peach Brown


LANTERN

Dimensions : Average Compressive Strength :
220 x 190 x 60mm thk In excess of 49 N/mm²

Units per m² : Manufacturing Standard :
35 pcs BS 6717 Part 1 1993
  (Upgraded to BS EN1338 : 2003 )

Average weight per piece : Applications :
3.5 kg Light to Medium Duty Traffic

Colour Selection :
Natural Grey, Regal Red, Dark Grey,Yellow Beige, Misty Green, Peach Brown


TWINPAVE

Dimensions : Average Compressive Strength :
198 x 98 x 60 / 80mm In excess of 40 N/mm²

Units per m² : Manufacturing Standard :
50 pcs BS 6717 Part 1 1993
  (Upgraded to BS EN1338 : 2003 )

Average weight per piece : Applications :
2.4 / 3.3 kg Edge Restraints and Light to Medium Duty Traffic

Colour Selection :
Natural Grey, Regal Red, Dark Grey,Yellow Beige, Misty Green, Peach Brown


TURFSTONE

Dimensions : Average Compressive Strength :
337.5 x 225 x 80mm Thickness
In excess of 40 N/mm²

Units per m² : Manufacturing Standard :
13.30 pcs BS EN 1338 : 2003

Average weight per piece : Applications :
9 kg Parking areas, driveways, road
shoulders etc and for erosion
control and soil stabilization to
slopes embankments and
reservoirs

Colour Selection :
Natural Grey

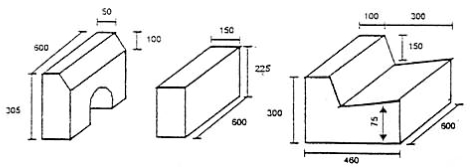

EVER Kerb Measurement (W*H*L) Colour
Normal Road Kerb-K1 & K2 150mm x 305mm x 600mm Natural Grey
Road Edge Restraint Kerb/Flush Kerb 150mm x 225mm x 600mm Natural Grey
Paver Edge Restraint Kerb 100mm x 225mm x 600mm Natural Grey

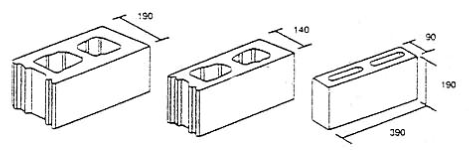

EVER Block Measurement (W*H*L) Colour
Hollow Block 90mm 90mm x 190mm x 390mm Natural Grey
Hollow Block 140mm 140mm x 190mm x 390mm Natural Grey
Hollow Block 190mm 190mm x 190mm x 390mm Natural Grey

EVER Bricks Measurement (W*H*L) Colour
Cement Bricks 70mm x 100mm x 200mm Natural Grey



Pave Sealant

APC Paveseel® is the proven jointing sand stabiliser. An elastomeric pre-polymer for the in-situ binding of jointing sand between external blockpavers.

Binds and stabilises the joining sand
Trafficking, heavy rain, vacuum sweeping, arcraft jet blasts, weed growth and burrowing insects can seriously erode paver jointing sand, causing block instability and eventual failure. APC Paveseel® penetrates deeply into the jointing sand to permanently bind the loose sand granules together creating a pliable elastromeric and virtually impermeable structure between the blocks, which will virtually eliminate further erosion.

Preserves Flexibility
APC Paveseel®'s elastomeric nature preserves the essential flexibility of the orignal joints and future easy removal of the blocks for access to the substrate.

Protects
APC Paveseel® seal sand joints, inhibiting the ingress of water and fuels. It discourages the growth of weeds, particularly between recently laid block pavers.

Seals the Pavers
Whilst APC Paveseel® is principally designed as a jointing sand binder and stabiliser, it will also have a sealing effect on the block paver surface.

Easy to apply
APC Paveseel® is easily applied by foam squeezee direct from the container.

Quick drying
Treated areas can be re-opened for traffic in 12 to 24 hours.

Uses
ports and terminals
petrol station forecourts
aircraft hard standings and taxiways
foothpaths and pedestrian precincts
car parks and ramps
roads and driveways

Packing
APC Paveseel® is available in 25 litre contaiers or 200 litre drums.

Appearance
APC Paveseel® is a clear, low viscosity liquid pre-polymer. Application will result in slightly darkening of paver blocks, which will enrich the original colour.

Coverage
Typical coverage is between 2 m2 to 2.5 m2 per litre depending on the porosity of the pavers. We recommend that approximately 2 litres of APC Paveseel® is decanted at a time before being worked into the paver joints.

All information is based on results gained from experience and tests and is believed to be accurate, but it is given without acceptable of liability for loss or damage attributed to reliance thereon as conditions of use outside our control.

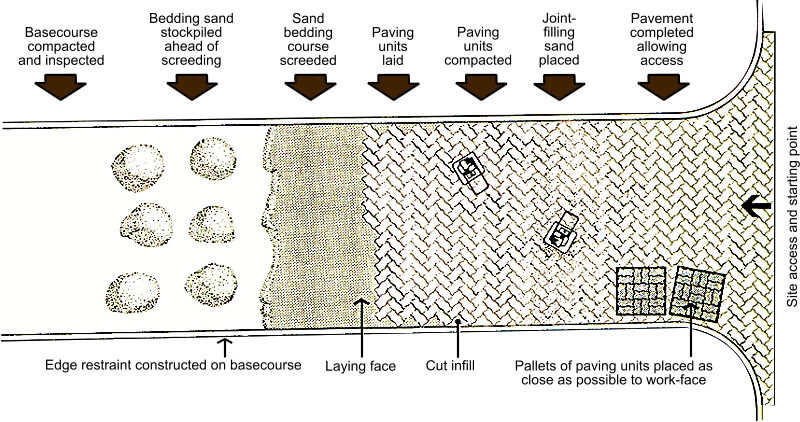

Laying Procedures


STEP 1
Start with a good, properly compacted base, before placing the sand bedding. After allowing surcharge for compaction, screed the sand with guide rods to achieve a uniform thickness of 30mm.


STEP 2
Lay Everpave interlocking concrete pavers closely in the desired pattern on the uncompacted sand.


STEP 3
Once the pavement is laid, compact with a vibrator.


STEP 4
Sweep fine, dry sand over the surface making sure it fills all the gaps between the pavers.



STEP 5
Vibrate the area again to ensure a strong interlocking bond and sweep off excess sand. Your pavement is now completed!
