POH YONG TILES

Poh Yong Tiles Industries Sdn Bhd (PYT) was incorparated in Kuching under the Companies Act 1965 on the 6th April 1977. It changed management in May 1996 and started its operation in August 1997 and relocated to the present site at Jalan Stephen Yong in the 1st quarter of year 2000.

The manufacturing of the famous “Poh Kwong 88®” (PK88) concrete interlocking roof tiles was started more than 35 years ago ( previously under different ownership ) and it is presently Kuching’s market leader in the supply of concrete roof tiles.

Poh Kwong 88® (Pk88) Interlocking Concrete Roof Tiles

Technology
Poh Yong Tiles Industries Sdn Bhd, your trusted name in roof tiles, is setting new standards in quality roofing. The latest technology and the experience of master craftmen have been combined through extensive research to produce the revolutionary Poh Kwong 88® concrete roof tile.

Specifications
With advanced specifications including a unique low pitch design, treble-weather bar, wider interlocking and deep double roll profile, Poh Kwong 88® tiles withstand the harshest tropical weather extremes and are guaranteed leak proof.

Product Range
Vibrant, durable colours in single or double coatings will enhance the value and beauty of your home for years to come, making Poh Kwong 88® a lifetime investment.

Product Range


Joint

POH KWONG 88® Advanced Roofing Technology

TREBLE- WEATHER BAR
The three weather bars at the underside of the tile nose are engineered to provide an effective barrier against rain penetration.

DEEP DOUBLE ROLL
This unique feature provides for fast rain drainage while the deeper water course prevents water from overflowing to the interlock.

WIDER INTERLOCKING
The precision-made wider interlocking allows an exact fit, preventing tile displacement and further safeguarding against rain penetration.

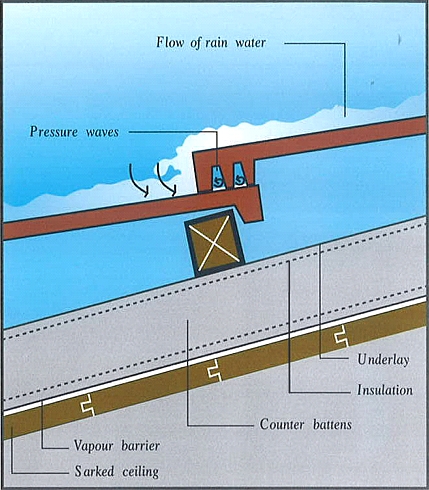

PRESSURE WAVES
The treble weather bars have two pressure zones that keep wind-driven rain out.

CRITICAL SIDE LAP
Two beadings are designed into the top face of the side lap to form critical water channels that keep rain water out.

LOW PITCH DESIGN
The unique design prevents the backflow of rainwater even at a very low pitch

SPECIFICATION

PROFILE
POH KWONG 88® Concrete Double Roll Roofing Tiles precision
made to a wider double interlocking oriental design.

MATERIAL
An extruded concrete roof tile with fused single or double colour coating.

COMPOSITION
Portland cement, selected aggregate, colour coat and clear gloss finishing coat.

FIRE RATING
Incombustible and fully fire resistant.

DIMENSIONS
420mm X 334mm

HEADLAP (Over 17° Pitch)
75mm (minimum)

SIDE LAP
34mm

WEIGHT
4.8kgs (approx.)

TILE COVERAGE
With 75mm - Head Lap - 9.8 pcs per square metre
With 100mm - Head Lap - 10.6 pcs per square metre.

PITCH
17° minimum (minimum Head Lap 100mm)

BATTENS
Minimum 50mm X 38mm (recommended)
with spacing at 363mm c/c (maximum)

NAILS
Galvinized or copper (recommended)

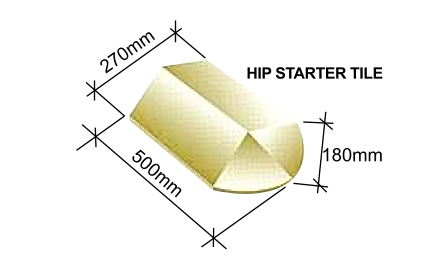

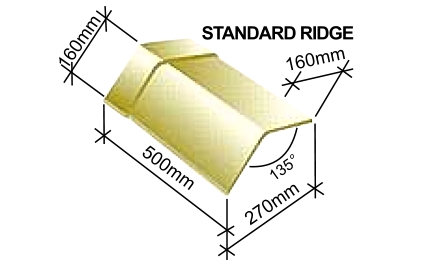

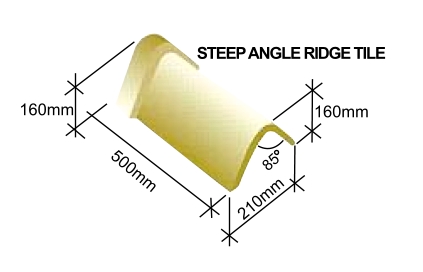

RIDGES
V shaped 500mm X 270mm

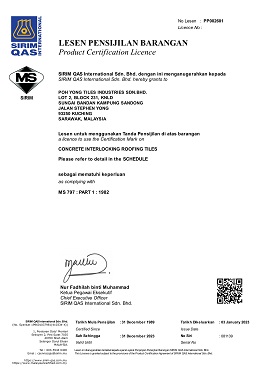

CONFORMS TO
Malaysia Standard MS 797: Part 1 - 1982

APPROVED BY
SIRIM (Standards & Industrial Research Institute of Malaysia).
